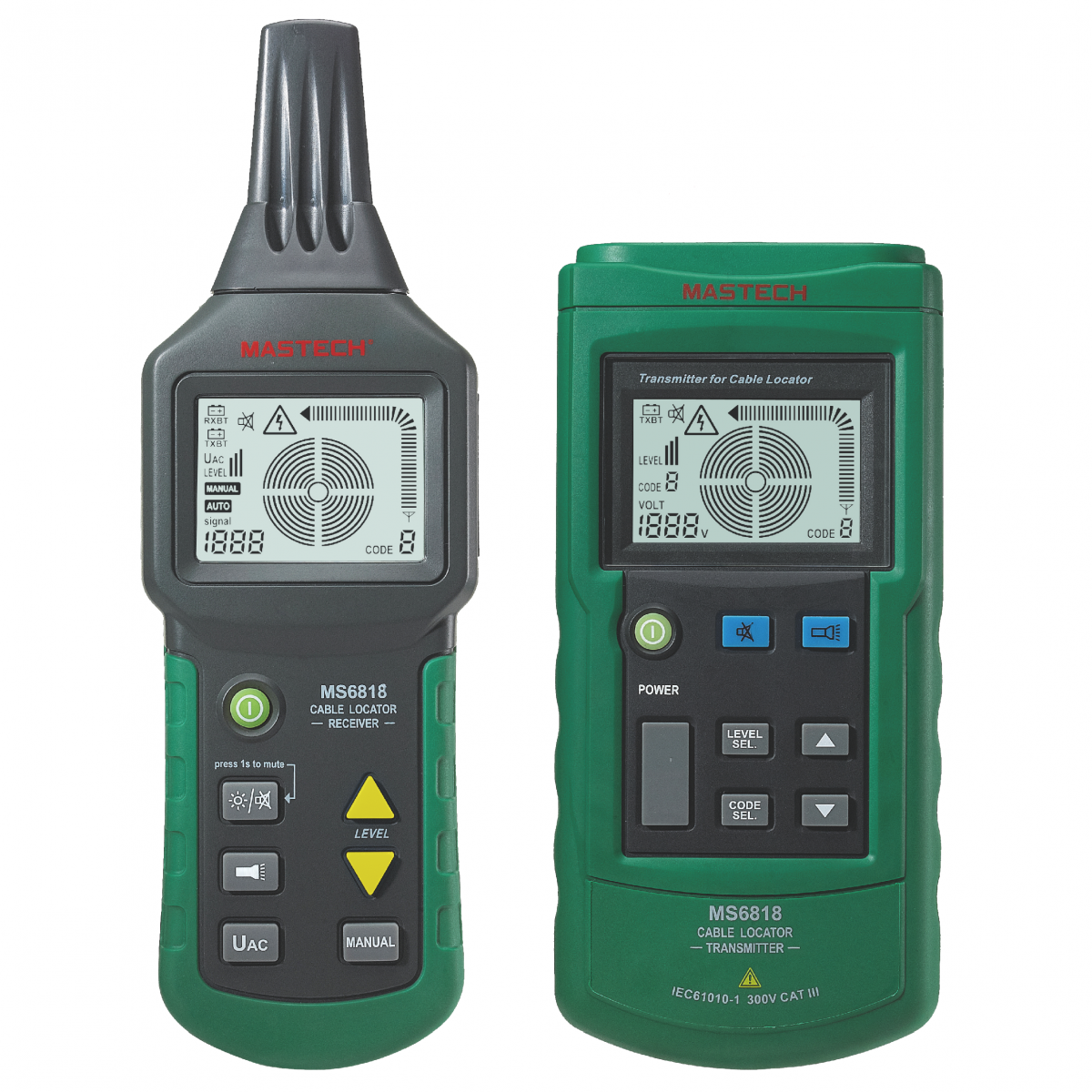

Zucchetti Ambrogio Perimeter Wire Break Detector NT-WD-NT (MS6818)

Zucchetti Ambrogio Perimeter Wire Break Detector - find those breaks in your perimter wire with ease.

The Underground Wire Cable Metal Pipe Locator Detector Tester consists of a signal transmitter and a receiver, widely used in the construction and maintenance of communication cables, power cables, metal pipes, and much more. Current and voltage conducting cables, electrical circuits, conduits, water and heating pipelines, fuses, switches can all be located. Short circuits and interruptions of assorted lines and cables can be detected. Even better, the detection is possible not only underground but also in walls and concrete.

Applications and Feature :
* Find the Beaks or Shorts in Cable in the wall or Earth
* Track Cables in the wall or Earth
* Find the Fuse and Safeguard
* Find the Beaks or Shorts in Conduit under the Floor
* Track a Metal Conduit in the Project of ware or hot
* Sensitivity of Receiver can be selected
* Auto Ranging,
* Auto Power Off
* Backlight and Worklight

Transmitter
* Product Size : 190mm x 89mm x 42.5mm / 7.48" x 3.5" x 1.67"
* Product Weight : 420g / 0.92lb
* Power Supply : 1x9V 6F22 Battery

Receiver
* Product Size : 241.5mm x 78mm x 38.5mm / 9.5" x 3" x 1.5"
* Product Weight : 350g / 0.77lb
* Power Supply : 6x1.5V AAA Battery

* Certificate : CE / ETL / RoHS
* Safety Rating : CAT III 300V

Technical Parameters of Transmitter
Output Signal: 125kHz
External Voltage: DC12~400V AC12~400V(50~60Hz) ±2.5%
Fuse: F0.5A 1000V
MIN Current: about 31mA
MAX Current: about 115mA
In Work: 0~40* , with MAX relative humidity of 80%
In Storage: -20~60* , with MAX relative humidity of 80%
Altitude: <2000m

Technical Parameters of Receiver
Depth of Tracking: The Depth of Tracking Depends on the Material and Specific Applications
Cable: Single pole application: about 0~2m
Locating: Dual pole application: about 0~0.5m
Mode: Single loop line: Up to 2.5m
MIN Current: about 32mA
MAX Current: about 89mA
In Work: 0~40* , with MAX relative humidity of 80%
In Storage: -20~60* , with MAX relative humidity of 80%
Altitude: <2000m
